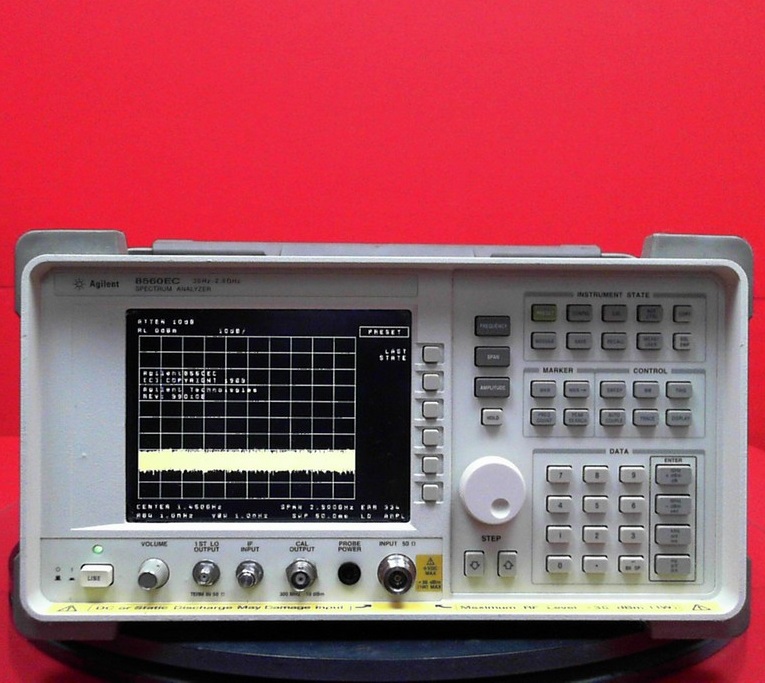

The Agilent 8560EC, Spectrum Analyzer, offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers.

The Agilent 8560EC, Used Spectrum Analyzers, combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions.

• Outstanding performance for sensitivity, phase noise, the 2nd and 3rd order dynamic range, and the voltage standing wave ratio (VSWR)
• Color Display
• Continuous 30 Hz to 2.9 GHz sweep
• Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
• Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
• Precision timebase and 1 Hz counter resolution
• MIL-PRF-28800 Class 3 rugged
• Measurement personalities for digital radio and phase noise measurements

Easily transfer screen image or trace data to PC with E4444A BenchLink software

Options Description:
